Description

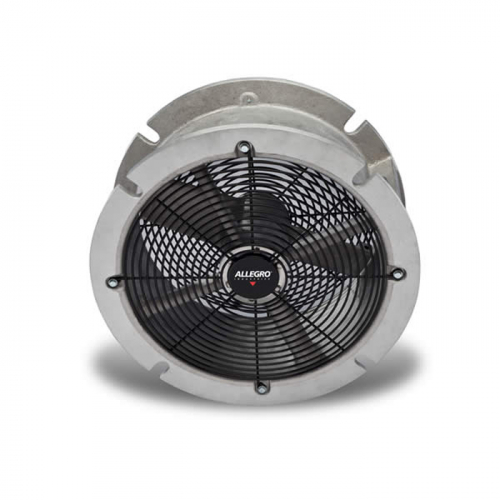

Jet Fan, 24", Allegro 9518-24

Allegro 9518-24, Jet Fan, 24"

Jet Fan, 24", Allegro Industries 9518-24. When operated, compressed air is pushed through a nozzle at the tip of each fan blade, which propels the fan at high speeds creating up to 16,900 CFM inlet pressure quickly and efficiently. The unit's flange is designed to fit standard API tank openings. These units can be used as blowers or exhausters, by simply reverse mounting. These blowers are easily transported from one place to another by using its recessed carry handles, or it may be rolled.

Details

• Heavy duty aluminum fan and fan housing.
• Heavy duty ball bearings (permanently lubricated and sealed for the life of the product).
• OSHA standard safety screens.
• 24.25" Internal diameter.
• 3/4" side mount inlet connector.

HAZMAT Item: No

Item Height: 13.00

Item Length: 34.00

Item Weight: 160.00

Item Width: 34.00

New: NEW

Type: Jet Fans
