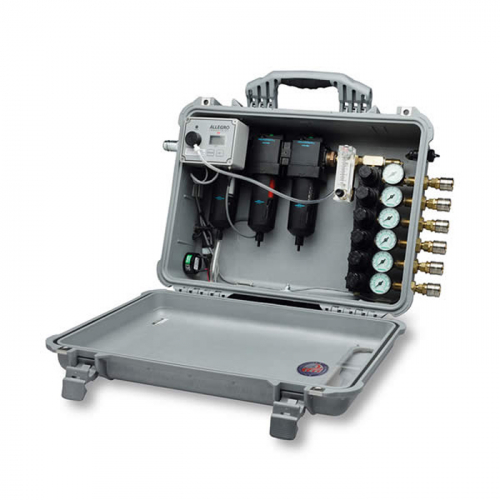

Allegro Industries 9874-MR, Multi-Regulator Filtration Panel, Four Port

Allegro Industries 9874-MR Four Worker Multi-Regulator Air Filtration Panel

Multi-Regulator Air Filtration Panel By Allegro Industries

The unique design of this panel allows each regulator to be individually adjusted at different pressure settings, allowing as well, separate outlets for air tools. The viewing window on the case allows monitoring of pressure gauges. A 16 gauge steel stand for support is included as well as all brass plumbing with quick-disconnect Hansen couplers.

GENERAL DESCRIPTION

Allegro air filtration panels filter impurities and hydrocarbons from an air compressor to convert to breathable air. A CO monitor is integrated to meet OSHA requirements for continuous monitoring of carbon monoxide levels. The panels provide 60 CFM (101.94 m3/hr) or 100 CFM (169.9m3/hr) of air within a 5-125 PSI (.34-8.62 bar) range. The unique design of these panels allows each regulator to be individually adjusted at different pressure settings, allowing as well, separate outlets to be used for air tools (fittings used for breathing air must not be compatible with other plant/tool air fittings, contact Technical Support for details).

CONSTRUCTION

• Housed in a portable, rugged Pelican case with carrying handle and latches for protection and security.
• Acrylic window to monitor pressure gauges.
• Black powder coated, 16 gauge steel stand for support.
• All brass plumbing with Quick-Disconnect Hansen couplers.

Part Number: Allegro Multi-Regulator Filtration Panel, Four Port, Allegro Industries 9874-MR.

Unit of Measure: Each

HAZMAT Item: No

Item Weight: 0.11

New: NEW

Type: Breathing Air Multi-Regulator Filtration Panels
