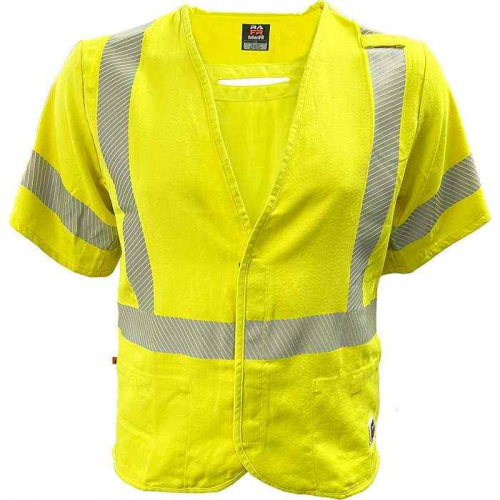

PIP 510FRGS-LM-XL, Reflective Apparel, ANSI Type R Class 3 AR/FR Solid Vest, Hi-Vis Apparel, Hi-Vis Yellow, XL
| Catalog # | PIP-510FRGS-LM-XL |
| Our Price |
$143.58 |
| List Price | $159.53 |
The information on this site is Copyright© protected. Safety Equipment Store®. The Safety Equipment Store®, and, Your One Source For Workplace Safety™, are Registered Trade and Service Marks of S&E Industrial Supply Co., Inc. 1976 to present.
Product Documents
Specification SheetDescription
ANSI Type R Class 3 Dual-Certified AR/FR Solid Vest with "D" Ring Access - 9.1 cal/cm2, Reflective Apparel 510FRGS-LM-XL
Ideal for construction, municipalities, and in work conditions that require high-visibility clothing be worn with flame or arc flash protection.
Features:
- ARC Rating: PPE 2, 9.1 cal/cm2.
- 48% lyocell / 40% modacrylic blend for inherent flame resistance with a soft, breathable feel.
- 12% aramid fibers for added strength and durability.
- D-ring access for easy harness connection.
- Hook and loop closure for quick, adjustable fastening.
- Dual-certified to NFPA 70E (ASTM F1506) and NFPA 2112-2023 standards.
- 2" retroreflective segmented silver FR tape enhances visibility.
- Meets CSA Z96.
- Meets ANSI/ISEA 107-2020 Type R Class 3.
Product Details:
| Color: Hi-Vis Yellow | Size: XL |
| Select Code: Protective Clothing | Commodity Code: FR Clothing |
| Brand: Reflective Apparel | Country of Origin: Nicaragua |
| UPC: 198987114312 | Case Weight (kg): 24.5 |
| Case Weight (lb): 54.01 | Case UOM: Each |
| Case Quantity: 30 | Color 1: Hi-Vis Yellow |
| SKUs: 510FRGS-LM-MD; 510FRGS-LM-5X; 510FRGS-LM-XL; 510FRGS-LM-3X; 510FRGS-LM-4X; 510FRGS-LM-SM; 510FRGS-LM-LG; 510FRGS-LM-2X | Sizes: M; 5XL; XL; 3XL; 4XL; S; L; 2XL |
| Sustainability: Reusable / Launderable | Construction: D-Ring Access |
| ANSI Type Class: R3 | HRC Method: ATPV |
| HRC Level: 2 | HRC Cal: 9.1 |
| Closure: Hook and Loop | NFPA 70e: 1 |
| NFPA :2112: 1 | ASTM F1506: 1 |
| Fabric: Aramid Blend; Modacrylic; Solid | Clothing Type: Vests |
| Country of Origin 1: Nicaragua | Packaging: Bagged Each |
| TAA Compliant: Yes | Gender: Men |
| High Frequency: No | Medium Frequency: No |
| Low Frequency: No | Product Launch Date: 2025-07-01 |
| UNSPSC Code: 46181531 | Care Instructions: Only synthetic detergents should be used on this AR/FR garment. Do not use bleach, starch, fabric softeners or detergents containing hydrogen peroxide on this garment as they could negatively affect the protective properties |
| Wash Instructions: Machine Wash | Wash Temperature: Water Temp 40°C |
| Wash Cycles: 25 | Bleach: Do Not Bleach |
| Dry Instructions: Tumble Dry | Dry Clean: Do Not Dry-clean |
| Dry Temperature: Low Heat | |
PIP "Protective Industrial Products" is a worldwide leader in Hand Protection and Personal Protective equipment.
Color: Hi-Vis Yellow
Country of Origin: Nicaragua
HAZMAT Item: No
Item Cube: 14.65 in^3
Item Height: 0.39 in
Item Length: 9.45 in
Item Weight: 1.81 lbs
Item Width: 3.94 in
Minimum Order Quantity: 1
Multiples of Quantity: 30
New: YES
Size: XL
Stock Type: STOCK
Type: 510FRGS
Unit of Measure: Each
UPC Code: 198987114312
